OEM/ODM project supply · Q235B / Q355B · 41×21 – 41×62 mm · Hot-dip galvanized ≥ 65 μm

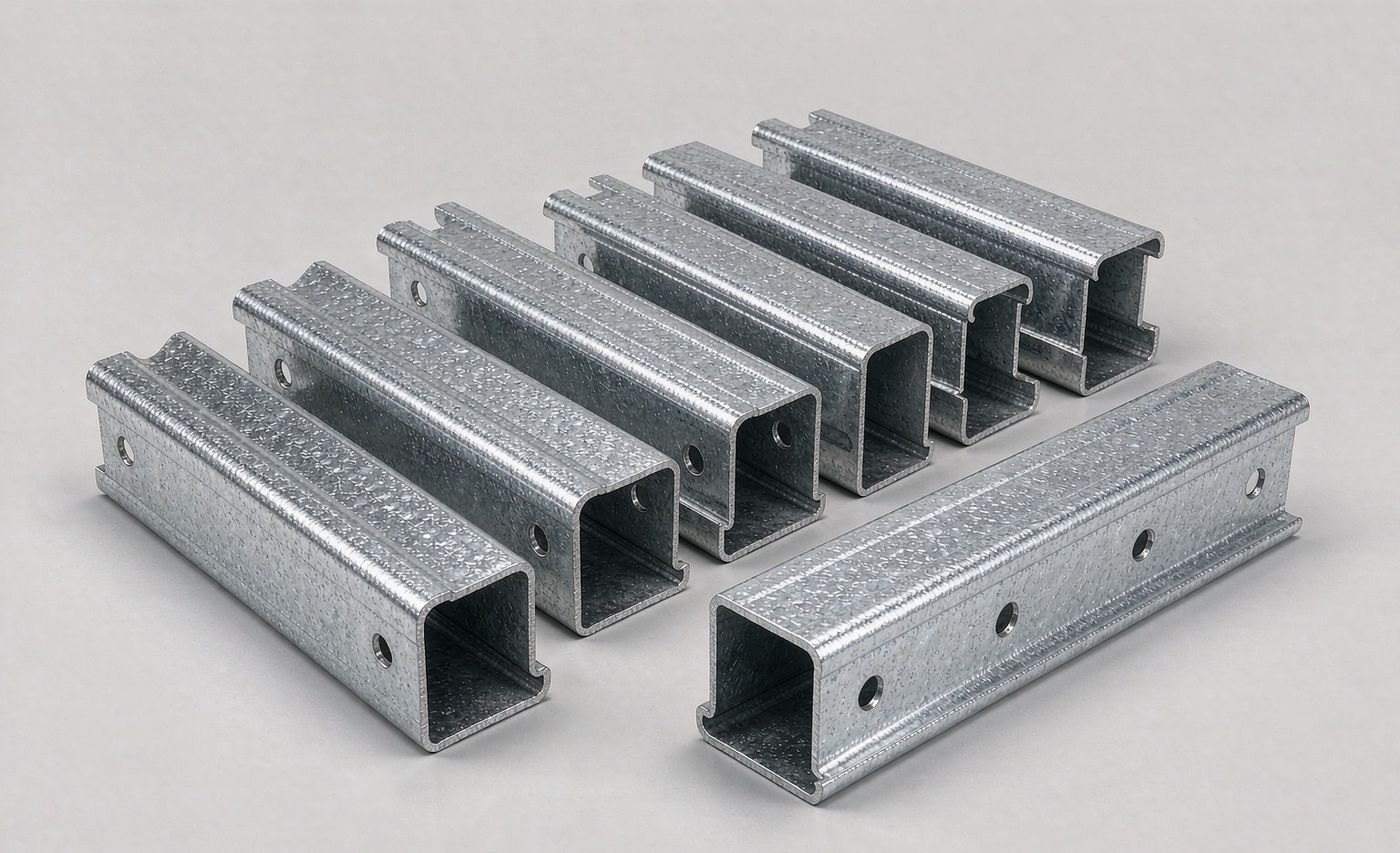

Complete roll-formed steel framing for solar mounting systems — columns, beams (purlins) and rails in four standard C-channel sections, pre-punched with adjustment holes and delivered in 6 m standard lengths cut to your project dimensions. Everything bolts together on site: no welding, faster installation, and a 25-year design life backed by hot-dip galvanizing.

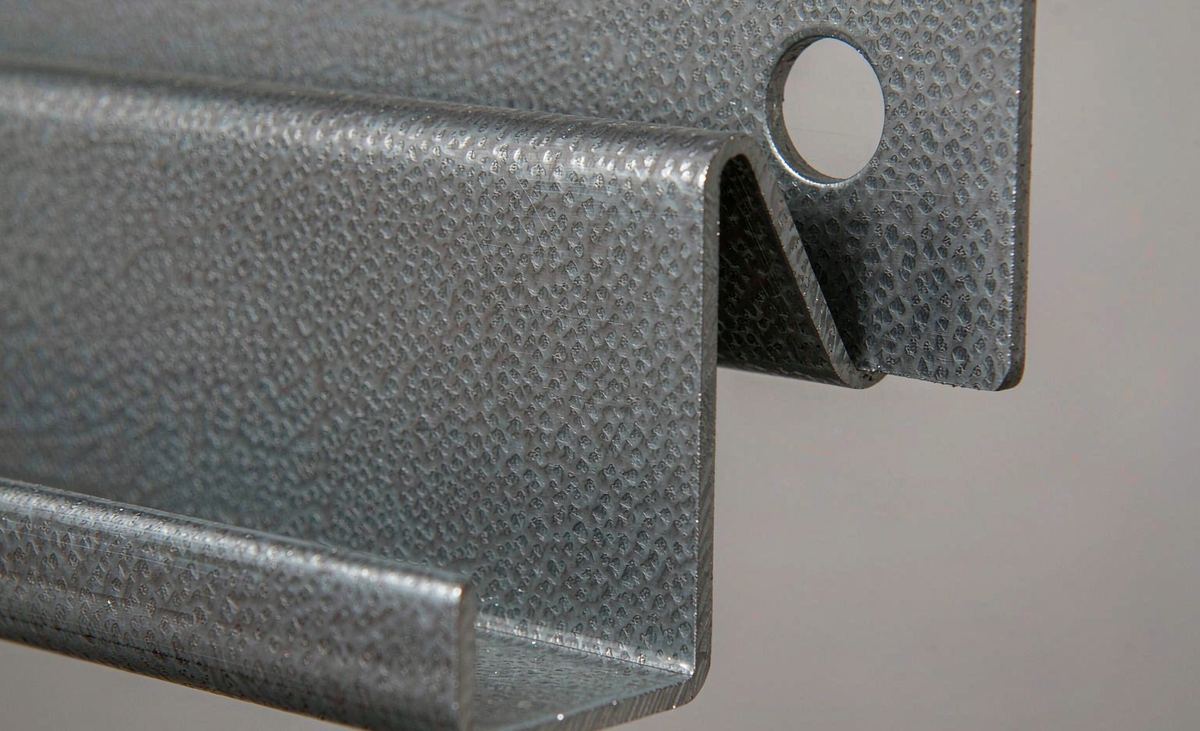

CNC-punched adjustment holes and fixed-length cutting at the factory — components arrive ready to bolt together.
Fully bolt-assembled design with matching clamps, Grade 8.8 bolts, nuts, washers and connectors — faster, safer installation.
41×21, 41×41, 41×52 and 41×62 mm with wall thickness 2.0 – 3.0 mm; custom sections produced on request.
Hot-dip galvanized ≥ 65 μm as standard, ≥ 85 μm for coastal environments; Mg-Al-Zn S350GD+ZM275 coating optional.
Designed for max wind speed 60 m/s and max snow load 1.4 kN/m², with a 25-year design service life.
6 m standard bars cut to custom lengths per project — mixed sizes can ship in one consolidated container.
All parameters can be customized to your project drawings or bill of quantities.
| Parameter | Common Specification |
|---|---|
| Product Name | Steel PV Support Components: Column, Beam (Purlin), Rail (C-Channel) |
| Material | Carbon steel Q235B / Q355B; optional Mg-Al-Zn S350GD+ZM275 |
| C-Channel Section Size | 41×21 mm, 41×41 mm, 41×52 mm, 41×62 mm; wall thickness 2.0 mm, 2.5 mm, 2.75 mm, 3.0 mm |
| Single Bar Length | 6 m standard length; cut to custom length per project |
| Feature | Roll-formed, pre-punched holes; bolt-assembled — no site welding required |
| Surface Treatment | Hot-dip galvanized, average coating ≥ 65 μm; ≥ 85 μm for coastal corrosive environments; Mg-Al-Zn optional |
| Matching Accessories | Clamps, Grade 8.8 hot-dip galvanized bolts, nuts, washers & connectors |
| Technical Condition | Max wind speed 60 m/s; max snow load 1.4 kN/m²; design service life 25 years |

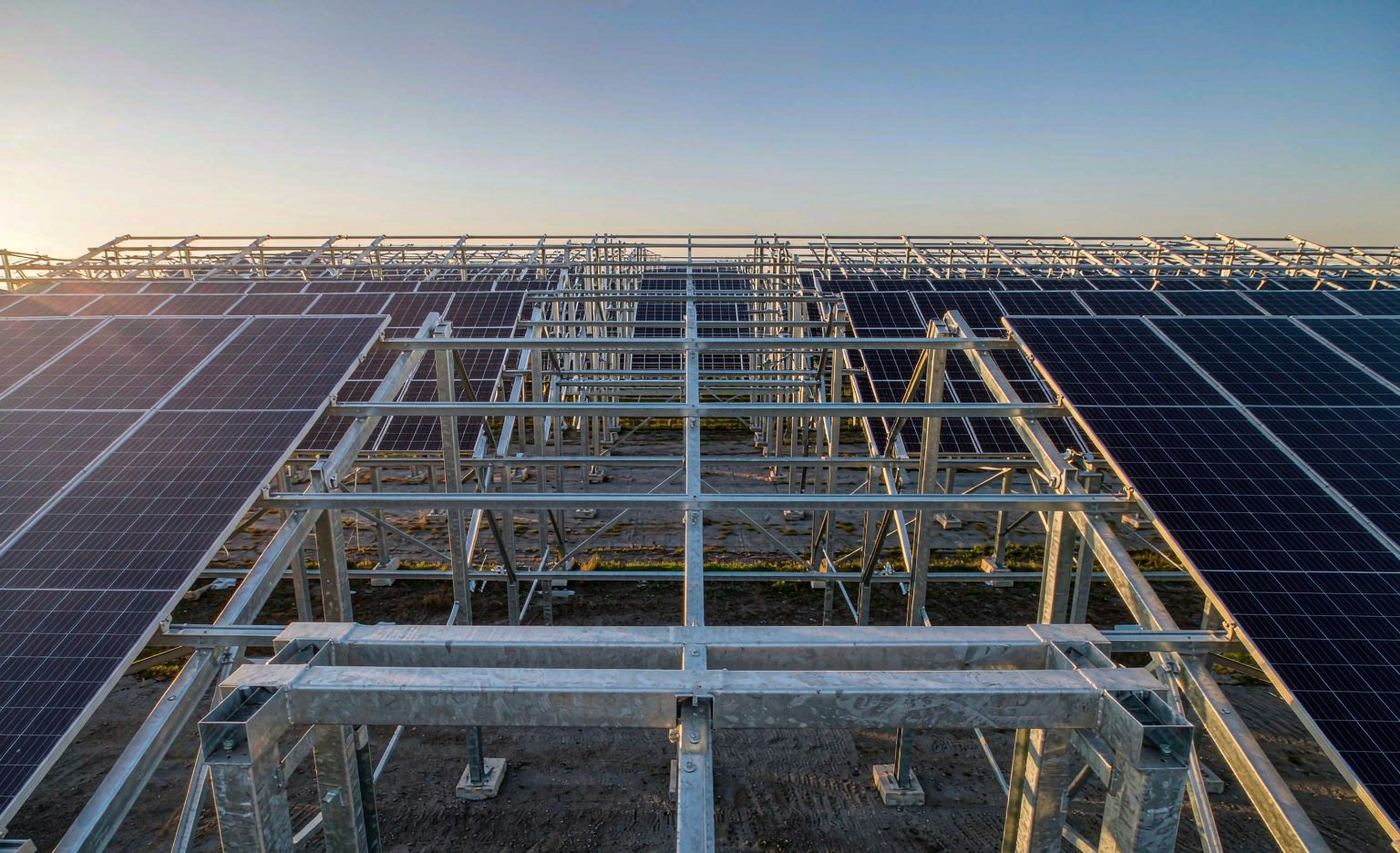

| Application | Supporting PV modules for ground-mount & rooftop distributed solar power stations |
| Manufacturing Process | Roll forming, fixed-length cutting, CNC punching, hot-dip galvanizing, packing |
| HS Reference Code | 7308900000 (complete loose set); non-processed bare profile falls under 7216 series |
Negotiable and quoted per project bill of quantities — trial orders and sample containers are welcome.
Bundles strapped and palletized in steel racks or wooden cases — sized for safe long-distance sea freight.
Typically 15–25 days after order confirmation, depending on section sizes, lengths and quantity.
Send us your section sizes, lengths, coating requirement and estimated quantities — or share your project layout drawing. We reply within 24 hours.
